Features & Specs

FEATURES

• Industrial grade design for high speed and high volume framing applications
• Lightweight with enhanced ergonomics and balance for comfort and control
• Recoil dampening engine system to minimize recoil
• Tool free features: depth-of-drive adjustment for precise setting of fasteners and selectable trigger for bump or sequential actuation mode
• Adjustable rafter hook

Specifications

• Belt / Rafter Hook Yes
• Collation Type Wire Weld
• Depth Adjustment Tool Free
• Dry Fire Lockout No
• Exhaust Fixed
• Fastener Diameter Range .113 to .131 in
• Fastener Type / Gauge: 28 Degree Wire Weld
• Firing / Acutation Mode Tool Free Selectable Trigger
• Grip Overmold
• Jam Clearance Yes
• Length 2 to 3-1/4 in
• Magazine Angle 28 Degree
• Magazine Capacity 100
• Magazine Loading Top Load
• Nail Diameter .113 to .131 in
• No Mar Pad No
• Operating Pressure 70 - 120 psi
• Power Source Pneumatic
• Power Tool Type Pneumatic
• Tool Height 12.75 in
• Tool Length 20.5 in
• Tool Weight 8.1 lbs
• Tool Width 4.95 in
• Trigger Lock-Off No

Includes

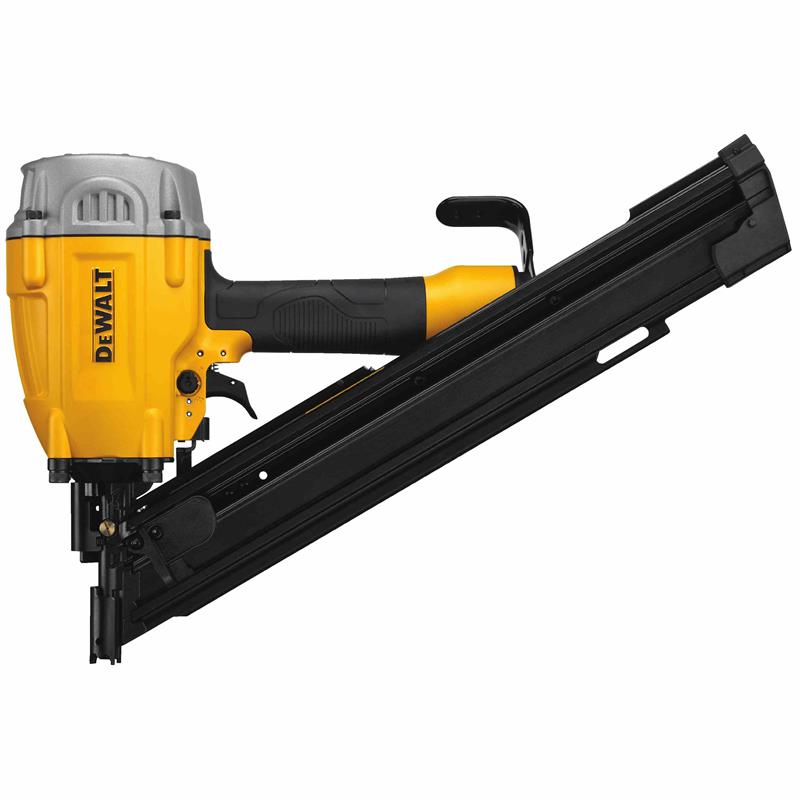

• DWF83WW Framing Nailer
