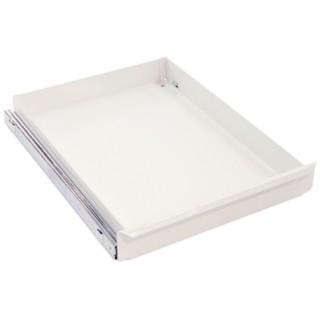

The Model 472-3 Standard 2-1/2 in Deep Drawer measures 22 in long and 16 in wide. With a load capacity of 100 lbs, the drawer can be added to the Model 47, 57 Rolling Work Bench.

(click image to enlarge)

Quick Overview

Deep Drawer for Model 47, 57
Load capacity 100 lbs
Requires 2 notches
Made of heavy gauge steel and arc welded in the corners for added strength
The rugged ball bearing slides give each drawer a 100 pound load capacity.
Place larger drawers to the bottom of the cabinet to avoid tipping
Each drawer is powder coated to resist chipping and scratching

Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications

Feature	Size / Details
Style	Drawers
Color	White
Height	2-1/2 in
Width	16 in
Length	22 in
Approx. Shipping Wt. Lbs.	16
Material	Steel
Fits Models	47, 57
Load Capacity, Drawer	100 lbs

Additional Drawers Models

Model No.	Height	Width	Length	Approx. Shipping Wt. Lbs.	Fits Models	Load Capacity, Drawer
471-3	1 in	16 in	22 in	13	47, 57	100 lbs
472-3	2-1/2 in	16 in	22 in	16	47, 57	100 lbs
474-3	4-1/2 in	16 in	22 in	18	47, 57	100 lbs
476-3	6 in	17-1/2 in	21-1/4 in	10	47	100 lbs
477-3	1 in	17-1/2 in	21-1/4 in	20	47	100 lbs
483-3	2-1/2 in	15-1/4 in	22 in	32	57	200 lbs
486-3	6 in	15-1/4 in	22 in	40	57	200 lbs
490-3	9-1/2 in	15-1/4 in	22 in	46		200 lbs

Additional Information

Manufacturer: Knaack

For More Information on the Standard 2-1/2 in Deep Drawer for 47, 57, [Click Here] to Link to Manufacturer Web Site
