Details

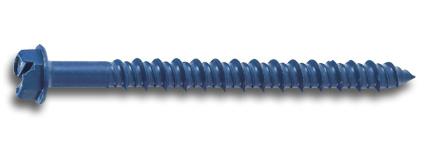

Tapper+    Concrete Screw Anchor

Product Description :
The Tapper+ fastening system is a complete family of screw anchors for light to medium duty applications in concrete, masonry block, brick, and wood base materials. The Tapper+ is fast and easy to install and provides a neat, fi nished appearance. The Tapper+ screw anchor is engineered with matched tolerance drill bits and installation tools designed to meet the needs of the user and also provide optimum performance. The Tapper+ features a gimlet point for self-drilling into wood base materials without pre-drilling.The Tapper+ screw anchor is available in carbon steel with a Perma-Seal climate coating in several colors. Head styles include a slotted hex washer head, Phillips flat head, trim Phillips flat head and Hex flange washer head.

General Applications and Uses :

Window installations

Storm shutters

Interior hand rails

Interior lighting fi xtures

Metal door frames

Thresholds

Joint fl ashing

Screened Enclosures

Features and Benefits :
+ Available in several head styles
+ Several colors and fi nishes to match application
+ Removable (reusable in wood)
+ High-low thread design for greater stability and grip
+ Does not exert expansion forces
+ No hole spotting required
+ Good corrosion protection with Perma-Seal coating
+ Gimlet point for self drilling into wood base material

Approvals and Listings :
International Code Council, Evaluation Service (ICC-ES), ESR-3068 for uncracked concrete (including FBC supplement), ESR-3042 for wood, ESR-3213 for chemically treated lumber.Code compliant with the International Building Code (IBC) and the International Residential Code (IRC).Tested in accordance with ACI 355.2 and ICC-ES AC193 (including ASTM E 488) for use in structural concrete, ICC- ES AC106 for use in masonry, ICC-ES AC233 for use in wood, and ICC-ES AC257 for use in pressure treated lumberEvaluated and qualified by an accredited independent testing labortatory for reliability against brittle failure, e.g. hydrogen embrittlementMiami-Dade County Notice of Acceptance (NOA) 10-0505.05

Guide Specifications :
CSI Divisions: 03 16 00 - Concrete Anchors, 04 05 19.16 - Masonry Anchors, 05 05 19 - Post-Installed Concrete Anchors and 06 05 23 - Wood, Plastic, and Composite Fastenings. Concrete Screw Anchors shall be Tapper+ anchors as supplied by Powers Fasteners, Inc., Brewster, NY.

View Product Specification

View Submittals
English

View Product Profiles
Harbor Point (Building and Land Technology), Stamford, CT

View Approvals

Additional Information

Manufacturer: Anchors Powers DeWalt

For More Information on the Tapper+, [Click Here] to Link to Manufacturer Web Site
