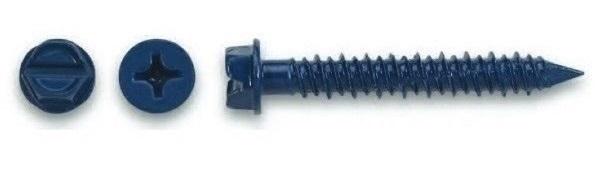

Blue Perma-Seal Tapper, Slotted Hex Head – Master Packaging

Anchors Powers DeWalt

(click image to enlarge)
SKUInfo/Size
9462
3/16" x 1 1/4"-HEX
9463
3/16" x 1 3/4"-HEX
9464
3/16" x 2 1/4"-HEX
9465
3/16" x 2 3/4"-HEX
9466
3/16" x 3 1/4"-HEX
9467
3/16" x 3 3/4"-HEX
9468
3/16" x 4"-HEX
9469
1/4" x 1 1/4"-HEX
9470
1/4" x 1 3/4"-HEX
9471
1/4" x 2 1/4"-HEX
9472
1/4" x 2 3/4"-HEX
9473
1/4" x 3 1/4"-HEX
9474
1/4" x 3 3/4"-HEX
9475
1/4" x 4"-HEX
Quick Overview

    General Applications and Uses :
      Zinc Plated Tappers
      • Metal Door Frames
      • Thresholds
      • Interior Electrical Applications
      • Joint Flashings

      Perma-Seal Tappers
      • Window Instal
Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Tapper    Concrete Screw Anchor

Product Description :

The Tapper fastening system is a complete family of screw anchors for light to medium duty applications in concrete, masonry block and brick base materials. The Tapper is fast and easy to install and provides a neat, finished appearance. The Tapper screw anchor is engineered with matched tolerance drill bits and installation tools designed to meet the needs of the user and also provide optimum performance.

For every project, it is important to consider several things before making a selection:
The proper head style, the color or finish that is desired, and the required level of corrosion resistance. The Tapper screw anchor is available in carbon steel with a zinc plated finish, carbon steel with a Perma-Seal climate coating in several colors. Head styles include a slotted hex washer head, Phillips flat head, trim head and flange head.


General Applications and Uses :
    Zinc Plated Tappers
    • Metal Door Frames
    • Thresholds
    • Interior Electrical Applications
    • Joint Flashings

    Perma-Seal Tappers
    • Window Installations
    • Storm Shutters
    • Interior Hand Rails
    • Interior Lighting Fixtures


Features and Benefits :
  • Tested in accordance with ASTM E488 and AC106 criteria
  • Available in several head styles
  • Several colors and finishes to match application
  • High-low thread design
  • Does not exert expansion forces
  • No hole spotting required
  • Good corrosion protection with Perma-Seal coating


  • Approvals and Listings :
    Miami-Dade County Notice of Acceptance (NOA) 09-0714.04

    Guide Specifications :

    CSI Divisions: 03151-Concrete Anchoring, 04081-Masonry Anchorage and 05090-MetalFastenings. Concrete Screw Anchors shall be Tapper anchors as supplied by PowersFasteners, Inc., Brewster, NY.


    Ordering Information :

    Hex head Tapper anchors are measured from below the washer while flat head Tapper anchors are measured end to end. To select the proper minimum anchor length, determine the embedment depth required to obtain the desired load capacity. Then add the thickness of the fixture, including any spacers or shims, to the embedment depth.


    Blue Perma-Seal Tapper, Slotted Hex Head and Flat Head :

    Catalog NumberSizeStandard BoxStandard CartonWt./100Drill Bit Reference
    HEXPFHStraightSDS HEX
    270027403/16" x 1 1/4"1005003/427812793
    270227423/16" x 1 3/4"100500127812793
    270427443/16" x 2 1/4"1005001 1/427822793
    270627463/16" x 2 3/4"1005001 1/227822793
    270827483/16" x 3 1/4"1005001 3/427832794
    271027503/16" x 3 3/4"1005002 1/427832794
    271227523/16" x 4"1005002 1/227832794
    272027601/4" x 1 1/4"1005001 1/227852796
    272227621/4" x 1 3/4"1005001 3/427852796
    272427641/4" x 2 1/4"100500227862796
    272627661/4" x 2 3/4"1005002 3/427862796
    272827681/4" x 3 1/4"1005003 1/427872797
    273027701/4" x 3 3/4"1005003 3/427872797
    273227721/4" x 4"1001004 1/227872797
    -27741/4" x 5"1001004 1/22788-
    -27761/4" x 6"1001005 1/22789-


    Blue Perma-Seal Tapper (Master Packaging) :

    Catalog NumberSizeStandard CartonWt./100Drill Bit Reference
    HEXPFHStraightSDS HEX
    946294763/16" x 1 1/4"20003/427812793
    946394773/16" x 1 3/4"2000127812793
    946494783/16" x 2 1/4"20001 1/427822793
    946594793/16" x 2 3/4"20001 1/227822793
    946694803/16" x 3 1/4"10001 3/427832794
    946794813/16" x 3 3/4"10002 1/427832794
    946894823/16" x 4"10002 1/227832794
    946994831/4" x 1 1/4"20001 1/227852796
    947094841/4" x 1 3/4"20001 3/427852796
    947194851/4" x 2 1/4"1000227862796
    947294861/4" x 2 3/4"10002 3/427862796
    947394871/4" x 3 1/4"10003 1/427872797
    947494881/4" x 3 3/4"10003 3/427872797
    947594891/4" x 4"10004 1/227872797
    -94901/4" x 5"10004 1/22788-
    -94911/4" x 6"5005 1/22789-


    View Product Specification

  • Stainless Steel

  • Perma-Seal Coated Carbon Steel


  • View Submittals
    English
    Additional Information
    Manufacturer: Anchors Powers DeWalt
    For More Information on the Blue Perma-Seal Tapper, Slotted Hex Head – Master Packaging, [Click Here] to Link to Manufacturer Web Site
