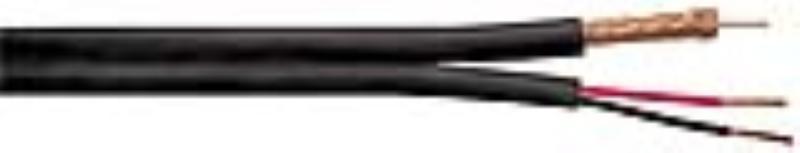

Coleman Cables Rg6 18Bc 95 Bc 18/2 Str Bc Siamese

993267

Coleman Cable - CCI

Rg6 18Bc 95 Bc 18/2 Str Bc Siamese
(click image to enlarge)
Quick Overview
    Features & Applications :-
    • Bare Copper Center Conductor
    • 95% Bare Copper Braid
    • PE Dielectric
    • CCTV
Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

1st part
OD (in)*
Conductors 18 AWG (1/. 040) Solid Bare Copper0.040
Dielectric Foam Polyethylene color natural 0.175
Shielding 95% Copper Braid0.197
2nd part
Conductor18 AWG (7/. 015) Stranded Bare Copper0.046
Dielectric PVC 0.074
TwistTwo conductors (1 Black & 1 Red) and two Polyolefin fillers are twisted together and wrapped overall in a clear polyester tape. 0.150
Final
Jacket PVC extruded over Part 1 and Part 2 with web attachedAppx. 0.270 x 0.495
Coax VALUE*
Impedance (ohms)- 75
Capacitance (pF/ft) - 17.3
Velocity of Propagation (%) - 78
Attenuation (Max. db/100 ft) 50 MHz 1.5
100 MHz 2.1
200 MHz 3.1
400 MHz 4.5
700 MHz 5.9
1000 MHz 7.3
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg6 18Bc 95 Bc 18/2 Str Bc Siamese, [Click Here] to Link to Manufacturer Web Site
