Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
RoHS & REACH compliant insulating compounds
Test Reports with manufacturing lot for each & every cable
Certificate of Compliance with MIL-DTL-17
Made in the USA
High frequency RF antenna for ground support equipment
Radar systems & flight guidance equipment
Secure & cryptic aerospace communications

Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters

Electrical Properties


		Wall (in)*	OD (in)*
Conductors	26 AWG (7/.0063) Copper Coated Steel (40% conductivity)	-	0.019
Dielectric	Solid Polyethylene color natural	0.021	0.06
1st Shielding	86% Tinned Coated Copper Braid	-	0.078
Jacket	PVC (Non-Contaminating Vinyl)	0.016	0.11

		VALUE*
Conductor Resistance (Max./100 ft)	-	9.67
Impedance (ohms)	-	50
Capacitance (Max. pF/ft)	-	32.2
Velocity of Propagation (%)	-	66
Attenuation (Max. db/100 ft)	50 MHz	6.5
	100 MHz	10.0
	400 MHz	25.0
	1000 MHz	45.0
SRL (Min: dB)	100 MHz	23
	500 MHz	20
	800 MHz	19
	1000 MHz	19

Additional Information

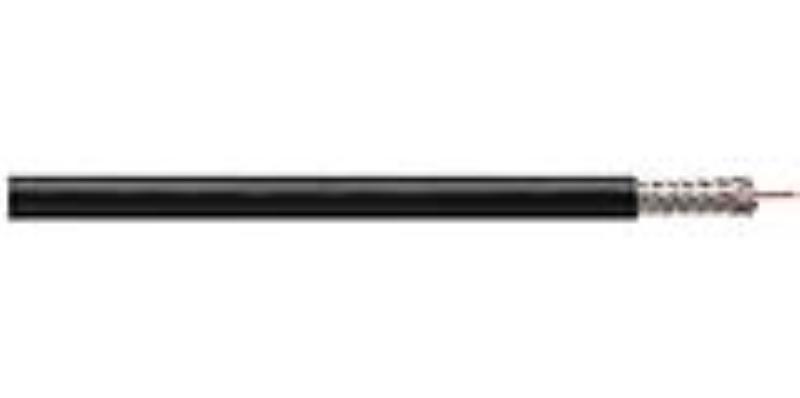

Manufacturer: Coleman Cable - CCI

For More Information on the Coleman Cables M17/119-Rg174, [Click Here] to Link to Manufacturer Web Site
