Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
RoHS & REACH compliant insulating compounds
Test Reports with manufacturing lot for each & every cable
Certificate of Compliance with MIL-DTL-17
Made in the USA
High frequency RF antenna for ground support equipment
Radar systems & flight guidance equipment
Secure & cryptic aerospace communications

Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters

Electrical Properties


		Wall (in)*	OD (in)*
Conductors	19 AWG (1/.035) Solid Silver Coated Copper	-	0.035
Dielectric	Solid Polyethylene color natural	0.041	0.116
1st Shielding	95% Silver Coated Copper Braid	-	0.146
2nd Shielding	94% Silver Coated Copper Braid	-	0.175
Jacket	PVC (Non-Contaminating Vinyl)	0.019	0.212

		VALUE*
Conductor Resistance (Max./100 ft)	-	0.9
Impedance (ohms)	-	50
Capacitance (Max. pF/ft)	-	32.2
Velocity of Propagation (%)	-	66
Attenuation (Max. db/100 ft)	50 MHz	4.8
	400 MHz	12.0
	1000 MHZ	21.0
	5000 MHz	55.0
	12400 MHz	92.0
SRL (Max db/100 ft)	0.5 GHz	25.0
	2.0GHz	21.5
	5.0 GHz	21.0
	12.0 GHz	19.0

Additional Information

Manufacturer: Coleman Cable - CCI

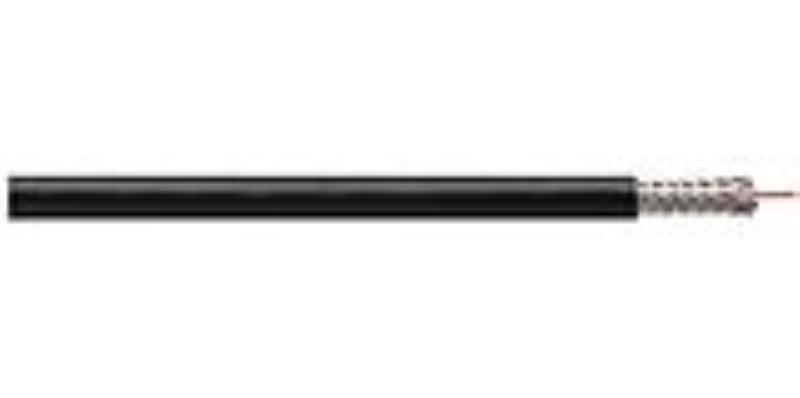

For More Information on the Coleman Cables M17/84-Rg223, [Click Here] to Link to Manufacturer Web Site
