Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
RoHS & REACH compliant insulating compounds
Test Reports with manufacturing lot for each & every cable
Certificate of Compliance with MIL-DTL-17
Made in the USA
High frequency RF antenna for ground support equipment
Radar systems & flight guidance equipment
Secure & cryptic aerospace communications

Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters

Electrical Properties


		OD (in)*
Conductor	22 AWG 0.0253” solid Copper clad steel	0.025
Dielectric	Semi-Solid Polyethylene color natural (includes 0.035” Diameter Monofilament thread (Air space)	0.146
Shielding	94% Bare Copper Braid	0.172
Jacket	PVC (Non-Contaminating Vinyl Type IIA)	0.242

		VALUE*
Conductor Resistance (Max./100 ft)		4.4
Shield Resistance (ohms/1000 ft		2.9
Impedance (ohms)		93
Capacitance (Max. pF/ft)		14.5
Velocity of Propagation (%)		84
Attenuation (Max. db/100 ft)
	100 MHz	2.7
	200 MHz	41
	400 MHz	8.0
	1000MHz	13.0

Additional Information

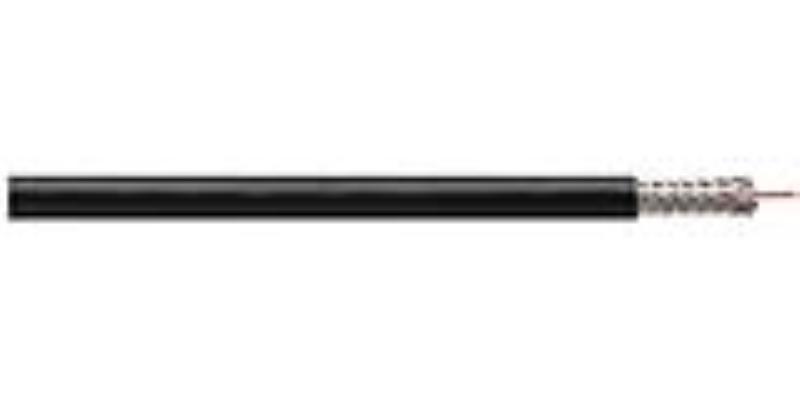

Manufacturer: Coleman Cable - CCI

For More Information on the M17/30-Rg062, [Click Here] to Link to Manufacturer Web Site
