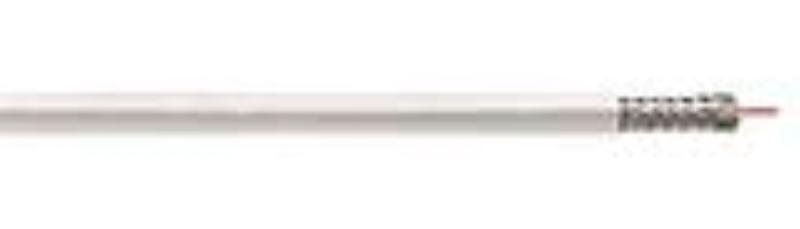

Coleman Cables Rg58A 20Tc 95 Tc Plenum

921021

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Application:-
    • RG58 Type
    • PE Dielectric
    • PVC Jacket
    • Tinned Copper Braid
    • CATV
    • MATV
Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 20 AWG (19/32) Stranded Tinned Copper - 0.035
Dielectric Foam FEP color natural 0.0335 0.102
Shielding Aluminum/Polyester/Aluminum Foil with 95% Tinned Copper Braid - 0.127
Jacket Low Smoke PVC 0.019 0.165
VALUE*
Conductor Resistance (ohms/kft) - 9.5
Impedance(ohms) - 50
Capacitance (pF/ft) - 24.8
Velocity of Propagation (%) - 82
Attenuation** (db/100 ft) 50 MHz 2.9
100 MHz 3.8
200 MHz 4.1
400 MHz 6.0
900 MHz 13.0
1000 MHz 15.3
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg58A 20Tc 95 Tc Plenum, [Click Here] to Link to Manufacturer Web Site
