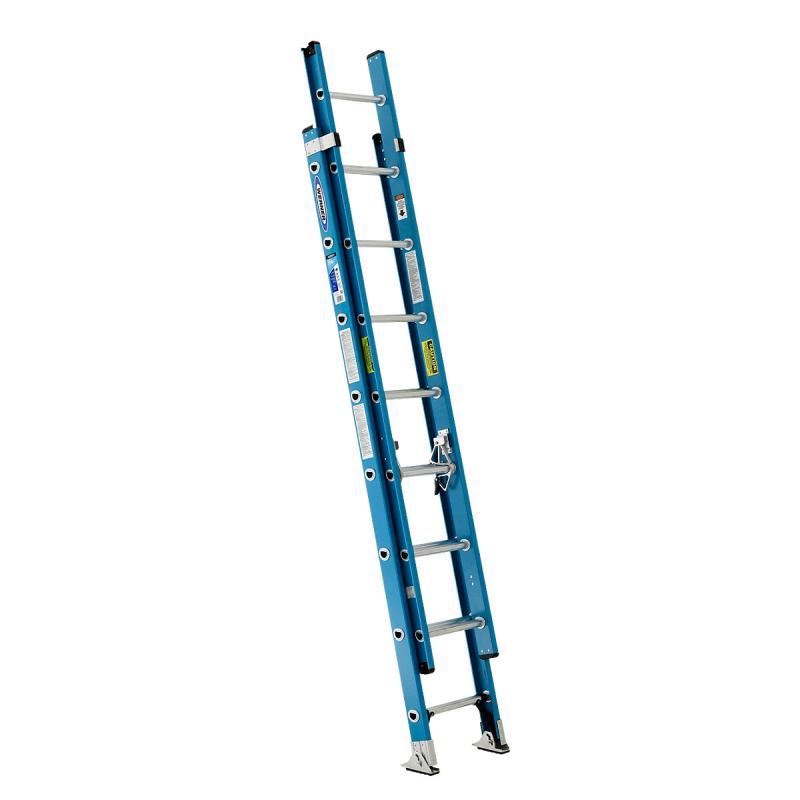

The FE1000-2 series fiberglass extension ladders have non-conductive side rails and a duty rating of 250 pounds. The Traction-Tred D rungs are slip resistant and the side rails are interlocking. The rail shields protect the bottom of the rail and the Shu-Lok shoe pivots easily for use on hard or penetrable surfaces. The exclusive ALFLO rung joint guarantees TWIST-PROOF performance.

(click image to enlarge)

Quick Overview

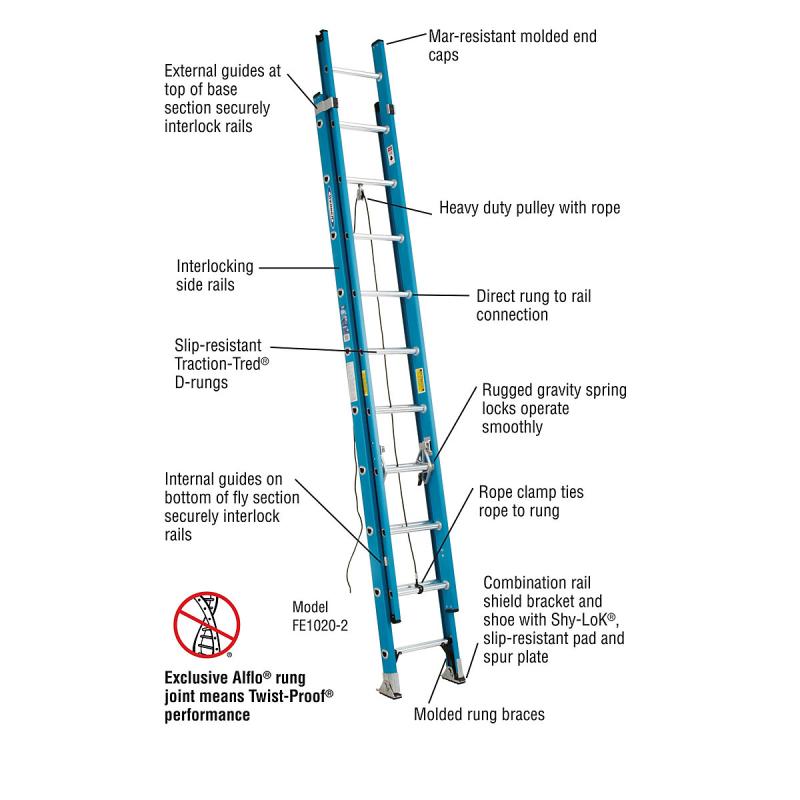

Features include:

Exclusive ALFLO rung joint means TWIST-PROOF performance
1-1/2" Slip-resistant TRACTION-TRED D-rungs
Interlocking Side Rails with internal rail guides on bottom of fly section securly connect rails
Durable extruded rung locks are spring loaded to operate smoothly
External guides at top of base secton securely interlock rails
Combination Rail Shield Bracket and Shoe with Shu-Lok and Slip-Resistant Pad
Internal guides on bottom of fly section securely interlock rails
Molded Rung Braces on bottom step for increases durability
Mar-Resistant Molded End Caps

Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3-3/8"

Flange Dimension: 1-3/16"

Rung Dimension: 1-1/2"

Fly Width: 15-3/4"

Base Width: 18-1/8" outside shoes

Specifications

Size: 16'

Reach Height: 16'

Max Working Length: 13'

Load Capacity: 250 lbs.

Type: Type I Duty Rating

Performance Rating: 3 Star

Material: Fiberglass

Rung Type: D

Foot Material: Slip-resistant pad

Number of Sections: 2

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 7

Approx. Shipping Wt. Lbs.: 32.5

Additional FE1000-2 Series Models:

Model No.	Size	Reach Height	Max Working Length	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
FE1016-2	16'	16'	13'	7	32.5
FE1020-2	20'	19'	17'	8.7	39

Additional Information

Manufacturer: Werner Co.
