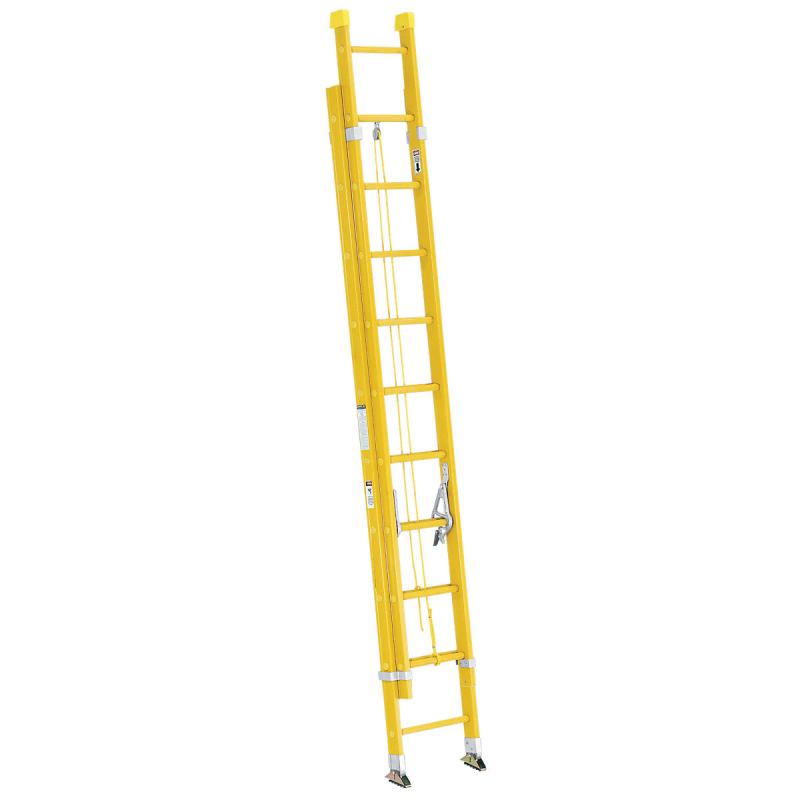

14' Type IA All Fiberglass Round Rung Extension Ladder

9514-1

Werner Co.

The 9500-1 All-Fiberglass Straight ladders are ideal in highly-corrosive environments. Where most fiberglass extension ladders have aluminum rungs, the 5900-1 series has unique box-beam rails that are connected with a fiberglass pultruded rung. Nylon plugs interlock the entire rung-to-rail connections. Thick rubber treads and spur plates provide a solid foundation at the foot. These ladders bear a duty rating of 300 pounds.

(click image to enlarge)
Quick Overview

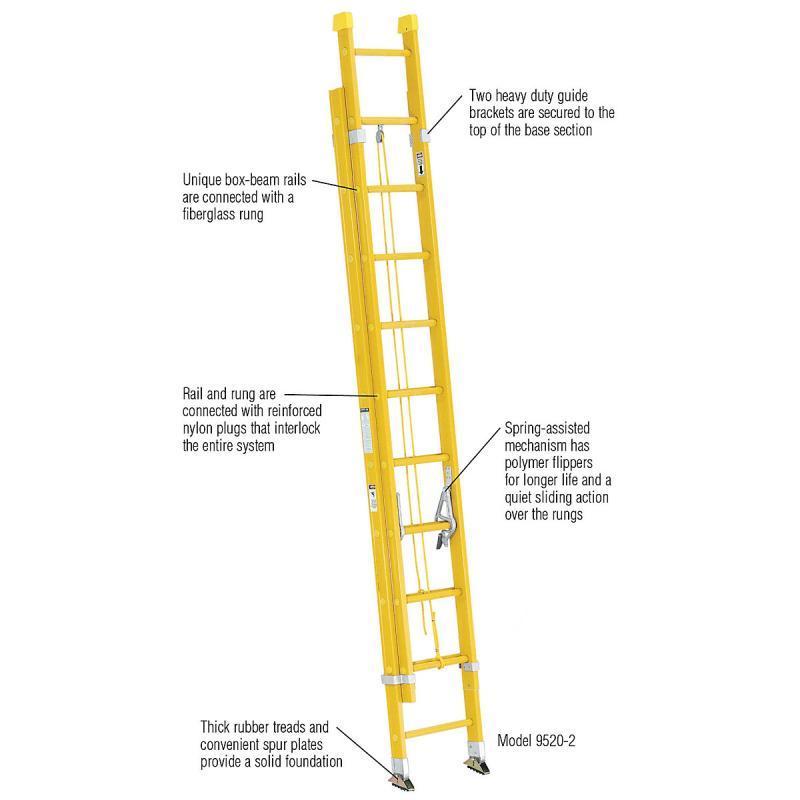

    Features include:

  • All Fiberglass rungs and rails ideal for harsh environments
  • Unique box-beam rails are connected with a fiberglass rung
  • Rail and rung are connected with reinforced nylon plugs that interlock the entire system
  • Thick rubber treads and convenient spur plates provide a solid foundation
  • Two heavy duty guide brackets are secured to the top of the base section
  • Protective molded endcaps mounted at the top of the ladder
Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Rails Dimension: 3-1/4"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-1/4"
  • Fly Width: 15-1/2"
  • Base Width: 19" outside shoes

  • Specifications

  • Size: 14'
  • Reach Height: 17'
  • Load Capacity: 300 lbs.
  • Type: Type IA Duty Rating
  • Performance Rating: 4 Star
  • Material: Fiberglass
  • Rung Type: Round
  • Foot Material: Slip-resistant pad
  • Number of Sections: 1
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 9.4
  • Approx. Shipping Wt. Lbs.: 30

  • Additional 9500-1 Series Models:
    Model No.SizeReach Height Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    9508-18'11'5.518
    9510-110'13'6.822
    9512-112'15'826
    9514-114'17'9.430
    9516-116'18'10.734
    9518-118'20'11.238
    9520-120'22'12.542
    Additional Information
    Manufacturer: Werner Co.
