6' Type IAA Fiberglass Tapered Sectional (Intermediate Section) Ladder

S7906-2

Werner Co.

The S7900 series is a Fiberglass Tappered Sectional Ladder with a base, middle and top section that can be combined to reach to reach 12', 16', or 20' lengths. Durable rail shields and shoe brackets protects the rail from damage. TRACTION-TRED round rungs are slip resistant, and the exclusive ALFLO rung joint means TWIST-PROOF performance every time. These ladders are made of non-conductive fiberglass rails and have a duty rating of 375 pounds.

(click image to enlarge)
Quick Overview

    Features include:

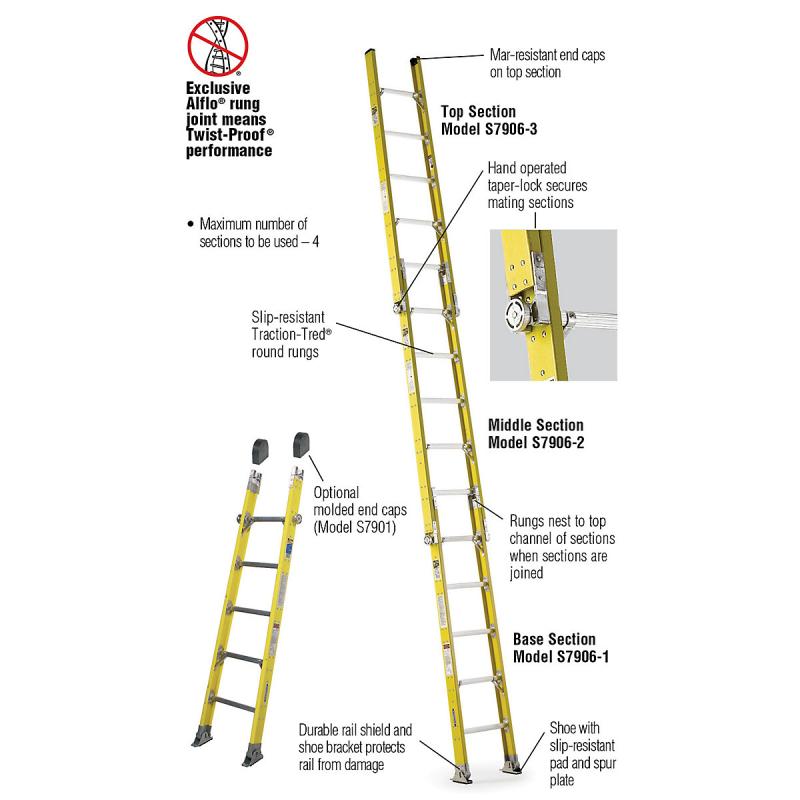

  • Middle section of the S7900 tapered sectional ladder system
  • Must be used in conjunction with model S7906-1 base section
  • Optional molded end caps (Model S7901)
  • Exclusive ALFLO rung joint means TWIST-PROOF performance

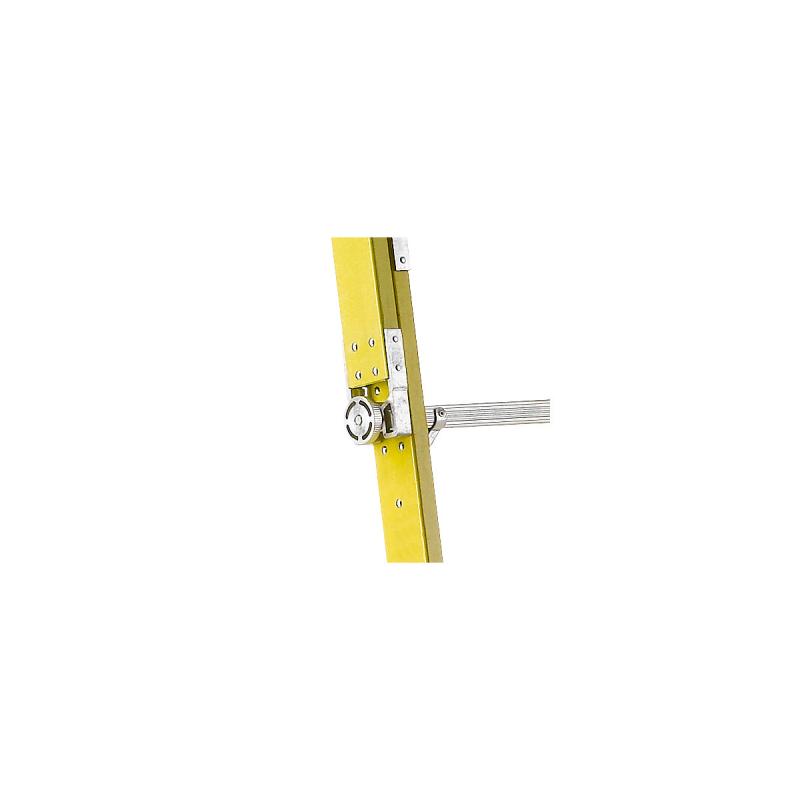

  • Hand operated taper-lock secures mating sections
  • Slip-resistant TRACTION-TRED round rungs nest to top channel of sections when sections are joined
  • A maximum of two pieces of S7906-2 can be use in conjunction with S7906-1 base and S7906-3 top sections
  • Shoe with slip-resistant pad and spur plate
Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-1/4"
  • Fly Width: 18-3/4"
  • Base Width: 18-3/4" outside rails

    • Specifications

  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Fiberglass
  • Rung Type: Round
  • Foot Material: Slip-resistant pad
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 3.5
  • Approx. Shipping Wt. Lbs.: 15.5

    • Additional S7900 Series Models:
    Model No.Approx. Cu. Ft. Per UnitApprox. Shipping Wt. Lbs.
    S7906-12.317
    S7906-23.515.5
    S7906-33.413
    Additional Information
    Manufacturer: Werner Co.
