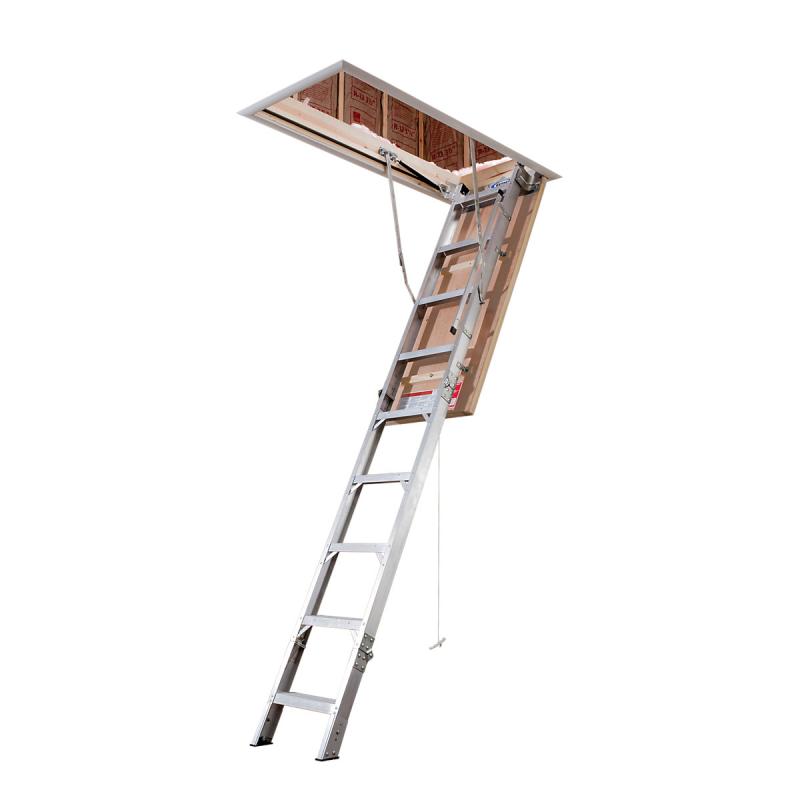

The AE Energy Seal Universal attic ladder provides 5 times more energy efficiency than a traditional attic ladder. Insulated door and built-in weatherstripping provide energy saving benefits. Lightweight, yet carries a duty rating of 375 pounds. Strut design eliminates springs and allows for a wide access opening. Easy to open and close. Available for standard size openings, with ceiling heights from 8’ to 10’.

(click image to enlarge)

Quick Overview

Features:

Innovative air locking design creates a tight seal, reducing drafts and air leakage up to 60%
Wide access opening
Easy to open, smooth closing
Fits all ceiling heights from 8' to 10'
Slip-resistant steps
Non-marring feet

Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.

Details

Performance Overview

Size	Load Capacity	Material
8'-10'	375 lbs	Aluminum

Specifications

Size: 8'-10'
Floor to Ceiling Height Range: 7'8" to 10'3"
Rough Opening Width x Length: 22-1/2" x 54"
Load Capacity: 375 lbs
Ladder Width: 14-1/8"
Landing Space Range: 4' - 5' 3"
Swing Clearance: 5' 10"
Foot Material: Aluminum with rubber bottom
Locking Device: Gas Strut
Opening Device: Rope
Door Material: Insulated plywood
Frame Material: Pine
Full Width Door hinge: Yes
Metal-to-Metal Rail hinge: Yes
Requires Cutting Foot Angle: No
Number of People for Installation: 2
Certifications: ANSI A14.9 (2010)
Approx. Cu. Ft. Per Unit: 7.6
Approx. Shipping Wt. Lbs.: 55.5

Dimensions

Rail Size: 1-1/2" x 2-3/8"
Flange: 1-1/2"
Step Length: 12-1/16"
Step Width: 3"

Additional Information

Manufacturer: Werner Co.
