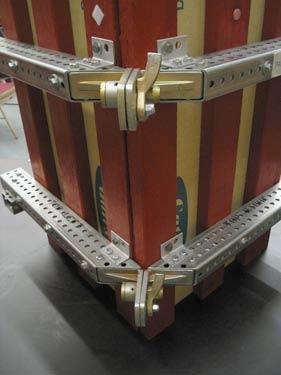

shown here is the lock unit featuring a sliding pin w/ slot and a #9 Anchor Lock claw
base material of the Lok'n Square is galvanized 2x3 telespar
can be made into a pivoting clamp or one that separates into two 90 degree halves utilizing two lock units rather than a lock and a pivot

Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.

Details

A close-up of the cast pivot unit that is inserted and secured into the 2x3 telespar.

Lok 'n Square Clamps in use on a multi story building

Lok 'n Square in a specialty application. Two columns connected by a downturn beam poured monolithically.

Lok 'n Square in a "L" shape form configuration. Note that a #9 Side Lock can be added to the 2x3 telespar to run a tie to assist on spans over 36".

High rise building in San Francisco using Lok 'n Square on columns and small "L" shaped shear walls

Specialty application adding a column next to an existing wall.

Additional Information

Manufacturer: Gates and Sons, Inc.

For More Information on the Lok 'n Square, [Click Here] to Link to Manufacturer Web Site
