Waterproofing Membrane - MEL-ROL

714

W.R. Meadows

VOC COMPLIANT Form Release Agent
(click image to enlarge)
Quick Overview
    FEATURES AND BENEFITS

  • Provides a better and cleaner cast when applied on pre-stressed and pre-cast concrete forms
  • Cuts stripping time to an absolute minimum
  • Reduces form cleaning and repairing
  • Increases wood form life...prevents rust...and rustproofs metal forms
  • Effectively minimizes concrete build-up on pavers, R/M trucks, mixers, spreader-finishers, buggies, chutes and other equipment
  • Prevents bonding between poured concrete and the form
  • Breaks concrete bond between the surface and the form cleanly and effectively...leaves smooth surface
  • Will not stain or discolor concrete and can be painted over
  • Ready-to-use...requires no additional mixing
  • VOC compliant

Interested in this item or want more information?
Call Mon. through Fri. 7:30 AM - 4:00 PM PST
Phone: (415) 822-4334
Email: Jon@LevelSupply.com

Can't find what you want? Give us a call and we can help you find it.
Details
USES

MEL-ROL waterproofing system provides a cost-effective answer to properly waterproof foundations, vertical walls and below-grade floors in residential and commercial construction. It is equally effective for use as between-the-slab waterproofing on plaza decks, parking decks and structural slabs. Use it as a waterproofing membrane to isolate mechanical and electronic rooms, laboratories, kitchens and bathrooms. MEL-ROL offers positive protection when "wrapped around" major rapid transit, vehicular, utility and pedestrian tunnel projects. MEL-ROL can also be used on insulated concrete forms (ICF).

Installation of PROTECTION COURSE from W. R. MEADOWS is recommended before backfilling. MEL-ROL also be used with drainage boards when specified.

DESCRIPTION

MEL-ROL waterproofing system is a flexible, versatile, dependable, roll-type waterproofing membrane. It is composed of a nominally 56 mil thick layer of polymeric waterproofing membrane on a heavy duty, four-mil thick, cross-laminated polyethylene carrier film. The two components are laminated together under strict quality-controlled production procedures.

A handy overlap guideline is printed 2 ½" (63.5 mm) in from the material edge on each side to assure proper overlap coverage and to assist in maintaining a straight application. Special exposed polymeric membrane strips are provided on both sides for positive membrane-to-membrane adhesion in the overlap area. The membrane strips are protected by a pull-off release strip. All components of the MEL-ROL waterproofing system work together to provide a cost-effective, positive waterproofing system that's quick and easy to apply.

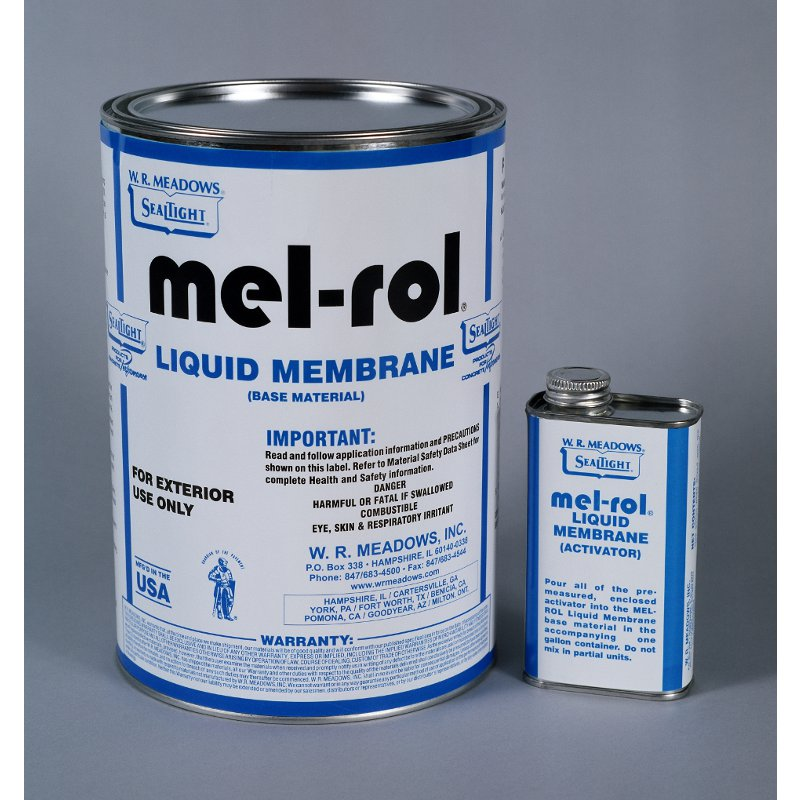

W. R. MEADOWS accessory products included in the MEL-ROL waterproofing system are: MEL-ROL LIQUID MEMBRANE, MEL-PRIME™ adhesive (solvent-based and water-based), POINTING MASTIC, DETAIL STRIP, CATALYTIC BONDING ASPHALT, TERMINATION BAR, PROTECTION COURSE and MEL-DRAIN™ drainage board.

PACKAGING

38.5" (.98 m) wide x 60' (18.29 m) long, one roll per carton.

COVERAGE

Provides 180 ft.² (17.88 m²) per roll. Gross coverage is 192.5 ft.². (Net coverage is 180 ft.² with overlap of 2 ½".)

SPECIFICATIONS

AREMA® Specifications Chapter 29, Waterproofing
Additional Information
Manufacturer: W.R. Meadows
